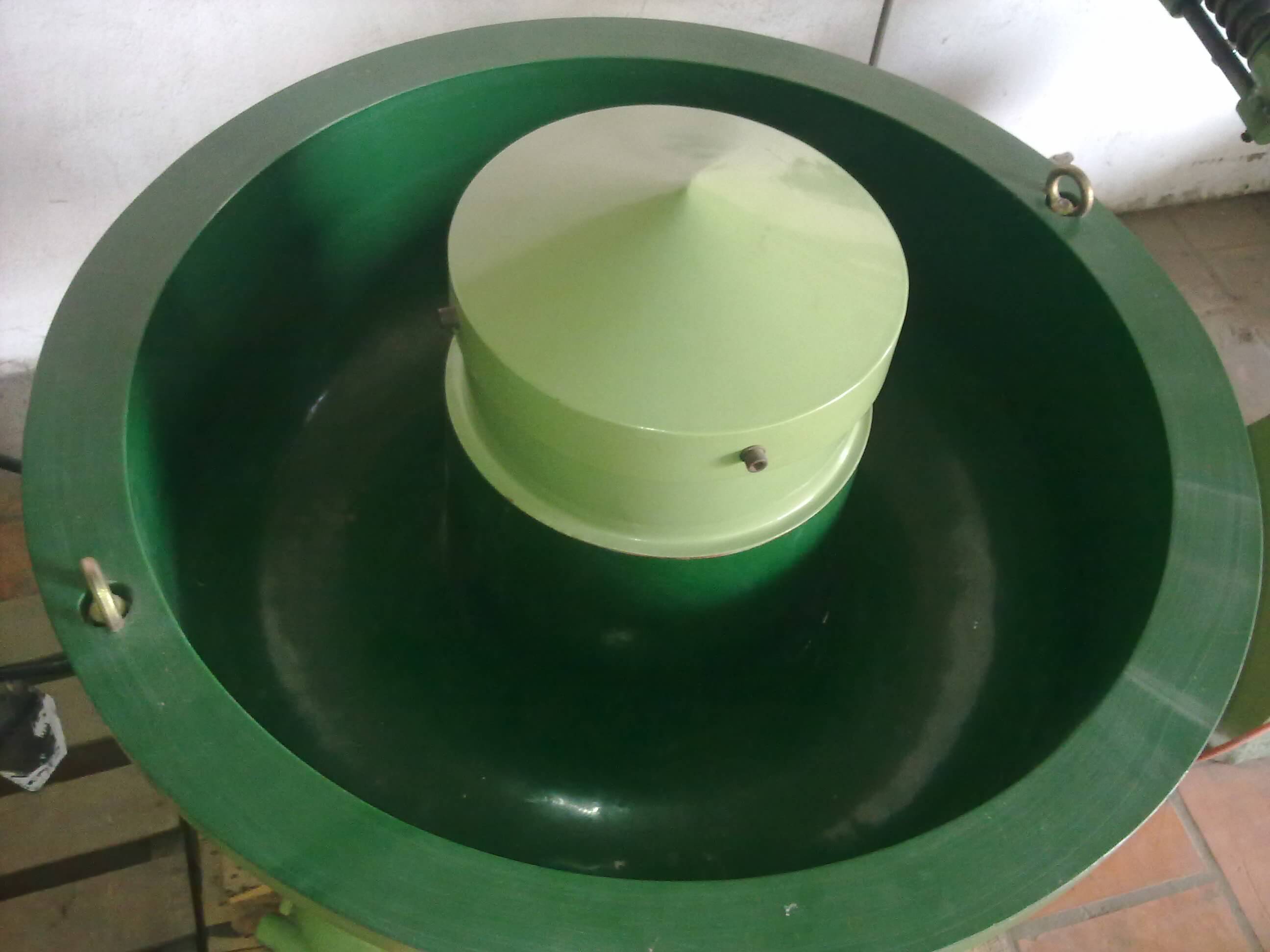

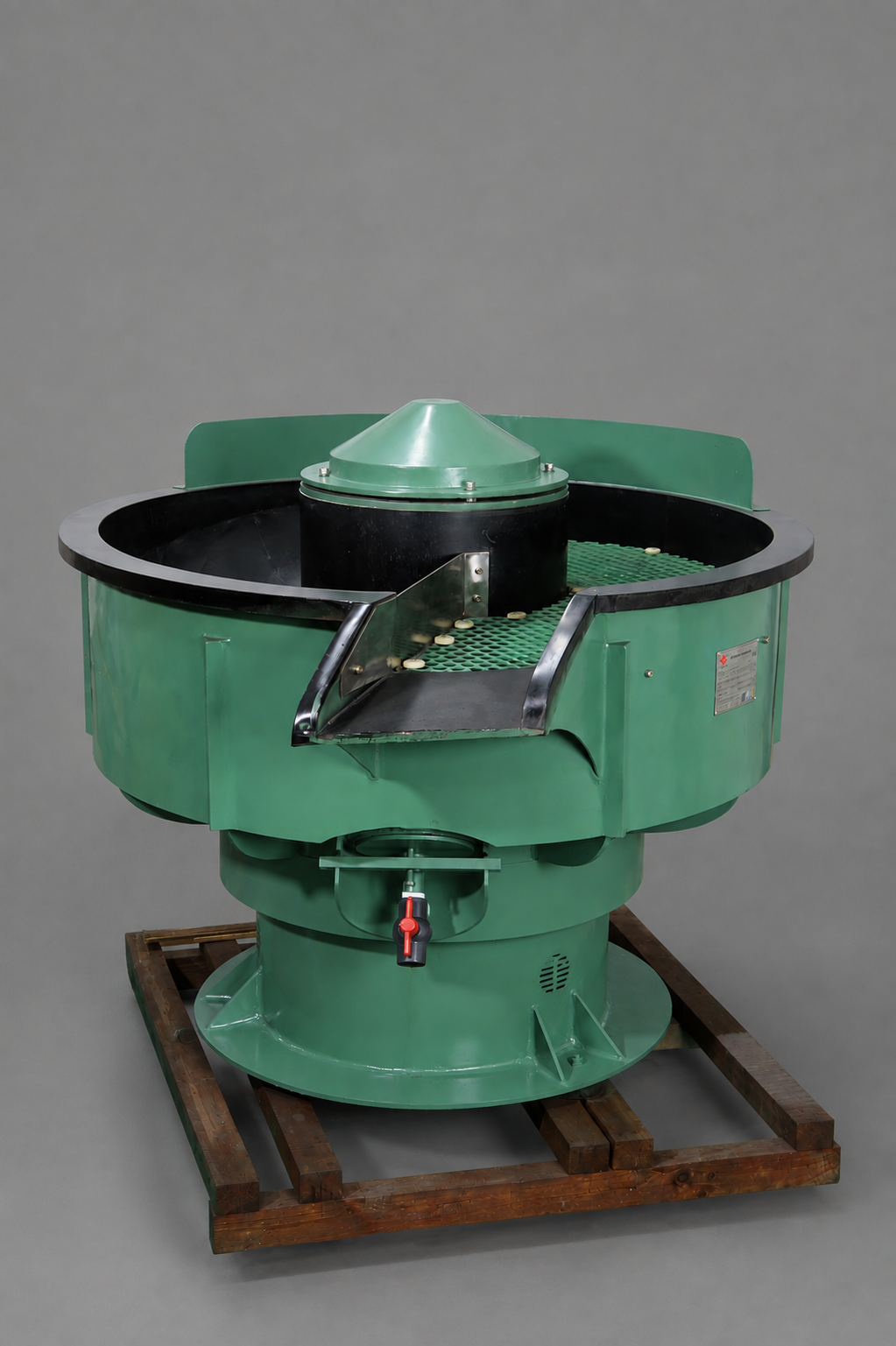

VB-100B Straight Wall Vibratory Finishing Machine is a premium metal surface treatment solution from Taiwan. Featuring a straight wall tank design, this machine delivers stable and uniform vibratory motion, ensuring superior cleaning and polishing performance.
With a 100-liter capacity, powerful 3HP motor, and a tank diameter of 890mm, the VB-100B is ideal for medium to small-scale production lines, perfectly suited for processing mechanical parts, electronic components, metal accessories, and other precision metal products requiring high-quality finishing.
Manufactured to stringent Taiwanese standards, the VB-100B guarantees durability, ease of operation, and low maintenance costs for your business.
Key Advantages:
-
Compact design with high efficiency
-
Straight wall tank enhances uniform surface processing
-
Made in Taiwan – assuring quality and stable performance
-
Versatile applications across industries: mechanical processing, electronics, stainless steel, aluminum, and more
Technical Specifications:
| MODEL | VB-50B | VB-100B | VB-150B | VB-250B | VB-350B | VB-500B | VB-750B |
| Volume | 50 | 100 | 150 | 250 | 350 | 500 | 750 |
| Mass weight (kg) | 220 kg | 360 kg | 450 kg | 600 kg | 720 kg | 1020 kg | 1600 kg |
| Volume of mass (kg) | 150 kg | 300 kg | 380 kg | 650 kg | 950 kg | 1200 kg | 2000 kg |
| Motor (HP) | 2 HP | 3 HP | 5 HP | 7.5 HP | 10 HP | 15 HP | 15 HP |
| Bowl diameler (mm) | 690 | 890 | 1035 | 1190 | 1350 | 1520 | 1750 |
| Overall height (mm) | 1040 | 1010 | 1095 | 1310 | 1390 | 1470 | 1630 |
