PZG (A) 150 Curved Tank Vibratory Machine is a specialized device designed for processing, mixing, and homogenizing materials, especially suited for the dyeing, textile, and chemical industries. Featuring a unique curved tank design and a powerful vibratory mechanism, this machine enhances processing efficiency while reducing operation time.
With a 150-liter capacity and 2HP power, it perfectly meets the demands of medium-scale production. Its compact design includes a wide processing tank (220mm diameter), 860mm height, and 330mm depth, making it adaptable to various factory layouts.
Manufactured in China and securely packed on a single pallet, it ensures safe transportation and easy storage.
Key Advantages:
-
Curved tank design optimizes material processing efficiency
-
Robust vibratory mechanism ensures stable operation
-
Versatile for diverse industrial applications
-
Easy maintenance and space-saving installation
Technical Specifications:

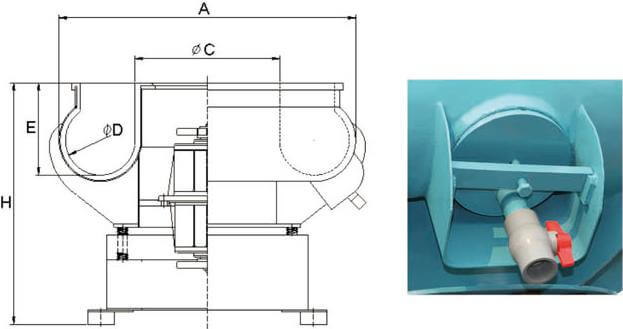

| Model | PZG(A)30 | PZG(A)80 | PZG(A)100 | PZG(A)200 | PZG(A)300 | PZG(A)600 | PZG(A)900 | PZG(A)1200 |
| Total Volume (L) | 31 | 78 | 100 | 200 | 300 | 600 | 900 | 1200 |
| Max overall dimention (A) | 640 | 830 | 1020 | 1200 | 1310 | 1820 | 1930 | 2020 |
| Motor installation tube Ø C | 130 | 226 | 470 | 540 | 620 | 910 | 610 | 740 |
| Process bowl width D(mm) | 185 | 224 | 220 | 220 | 280 | 380 | 560 | 560 |
| Tunnel depth E (mm) | 225 | 270 | 330 | 343 | 365 | 500 | 490 | 645 |
| Machine height H(mm) | 810 | 920 | 860 | 900 | 900 | 1350 | 1330 | 1420 |
| Motor (kw) | 0.5 | 0.75/1.1 | 1.5/2.2 | 3 | 3.7/5.0 | 5.5/7.5 | 9.0/11.0 | 11.0/15.0 |
| Weight (kg) | 100 | 120 | 260 | 400 | 560 | 1080 | 1850 | 2400 |
