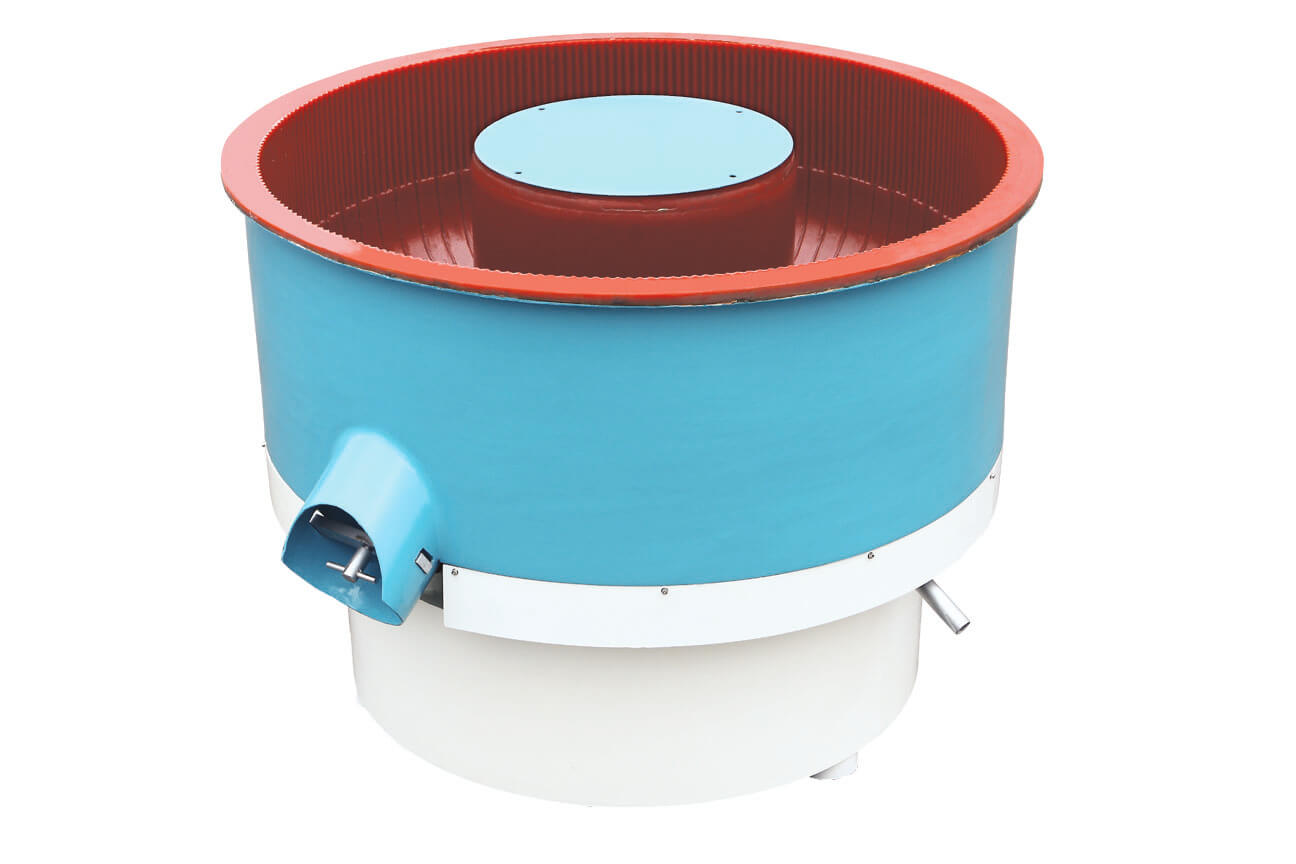

PZG (B) 200 Straight- Wall Bowl Vibratory Finishing Machine is a specialized solution designed for metal surface treatment, especially ideal for parts with complex shapes. Featuring a straight tub design, this machine ensures uniform agitation and rotation, delivering superior results in polishing, cleaning, and rust removal.
Powered by a robust 3.0 kW motor and boasting a spacious 220L capacity, it meets the demands of high-volume production with consistent and reliable performance.
Key Advantages:
-
Straight tub design optimized for even vibration distribution
-
Enhanced efficiency in polishing and surface cleaning
-
Quiet operation with energy-saving performance
-
Durable construction ensuring long service life
Technical Specifications:
| Model | PZG(B)30 | PZG(B)60 | PZG(B)100 | PZG(B)200 | PZG(B)300 | PZG(B)400 | PZG(B)600 | PZG(B)900 | PZG(B)1200 | PZG(B)1500 | PZG(B)2500 |
| Total Volume (L) | 30 | 63 | 100 | 220 | 250 | 400 | 660 | 920 | 1300 | 1500 | 2500 |
| Max overall dimention A(mm) | 670 | 830 | 1020 | 1200 | 1310 | 1410 | 1820 | 1930 | 1930 | 2120 | 2300 |
| Motor installation tube Ø C (mm) | 136 | 114 | 470 | 625 | 620 | 633 | 910 | 610 | 610 | 690 | 850 |
| Process bowl width D(mm) | 184 | 280 | 216 | 220 | 270 | 320 | 370 | 560 | 560 | 630 | 650 |
| Tunnel depth E(mm) | 200 | 245 | 330 | 385 | 390 | 450 | 490 | 510 | 575 | 630 | 850 |
| Machine height H(mm) | 800 | 910 | 860 | 915 | 900 | 1040 | 1140 | 1350 | 1350 | 1420 | 1350 |
| Motor (Kw) | 0.5 | 0.75/11 | 1.5/2.2 | 3.0 | 3.7/5.0 | 5.0 | 5.5/7.5 | 9.0 | 11.0 | 15 | 18.5 |
| Weight (kg) | 85 | 110 | 260 | 420 | 600 | 850 | 1100 | 1850 | 2200 | 2400 | 3000 |
