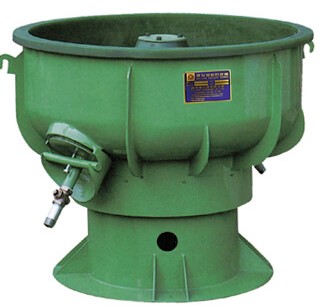

VB-150E Straight-Wall Vibratory Finishing Machine is a high-performance surface treatment solution manufactured in Taiwan, specially designed for polishing, cleaning, and processing metal, plastic, and technical materials. Featuring a straight-wall tub and powerful vibration mechanism, this machine ensures uniform motion for optimal finishing results.
With a capacity of 150 liters and a 2HP motor, the VB-150E is ideal for small to medium-scale production needs. Its compact design—890mm tub diameter and 860mm height—allows easy installation in diverse workspace environments. The machine is securely packaged on a single pallet for convenient transport and setup.
Key Advantages:
-
Straight-wall tub design optimizes vibration force and processing efficiency
-
Quiet motor operation with energy-saving performance
-
User-friendly, suitable for a wide range of industrial applications
-
Manufactured in Taiwan, guaranteeing high quality and exceptional durability
Technical Specifications:
| MODEL | VB-25E | VB-50E | VB-100E | VB-150E | VB-250E | VB-350E | VB-600E | VB-750E | VB-1000E |
| Volume | 25 | 50 | 100 | 150 | 250 | 350 | 600 | 750 | 1000 |
| Mass weight (kg) | 103 kg | 180 kg | 300 kg | 390 kg | 550 kg | 670 kg | 1100 kg | 1500 kg | 1700 kg |
| Volume of mass (kg) | 100 kg | 150 kg | 300 kg | 380 kg | 650 kg | 950 kg | 1200 kg | 2000 kg | 2000 kg |
| Motor (HP) | 1/2 HP | 1 HP | 2 HP | 3 HP | 5 HP | 7.5 HP | 10 HP | 15 HP | 15 HP |
| Bowl diameler (mm) | 560 | 690 | 890 | 1035 | 1190 | 1350 | 1560 | 1750 | 1830 |
| Overall height (mm) | 625 | 835 | 860 | 885 | 970 | 1030 | 1035 | 1260 | 1260 |
