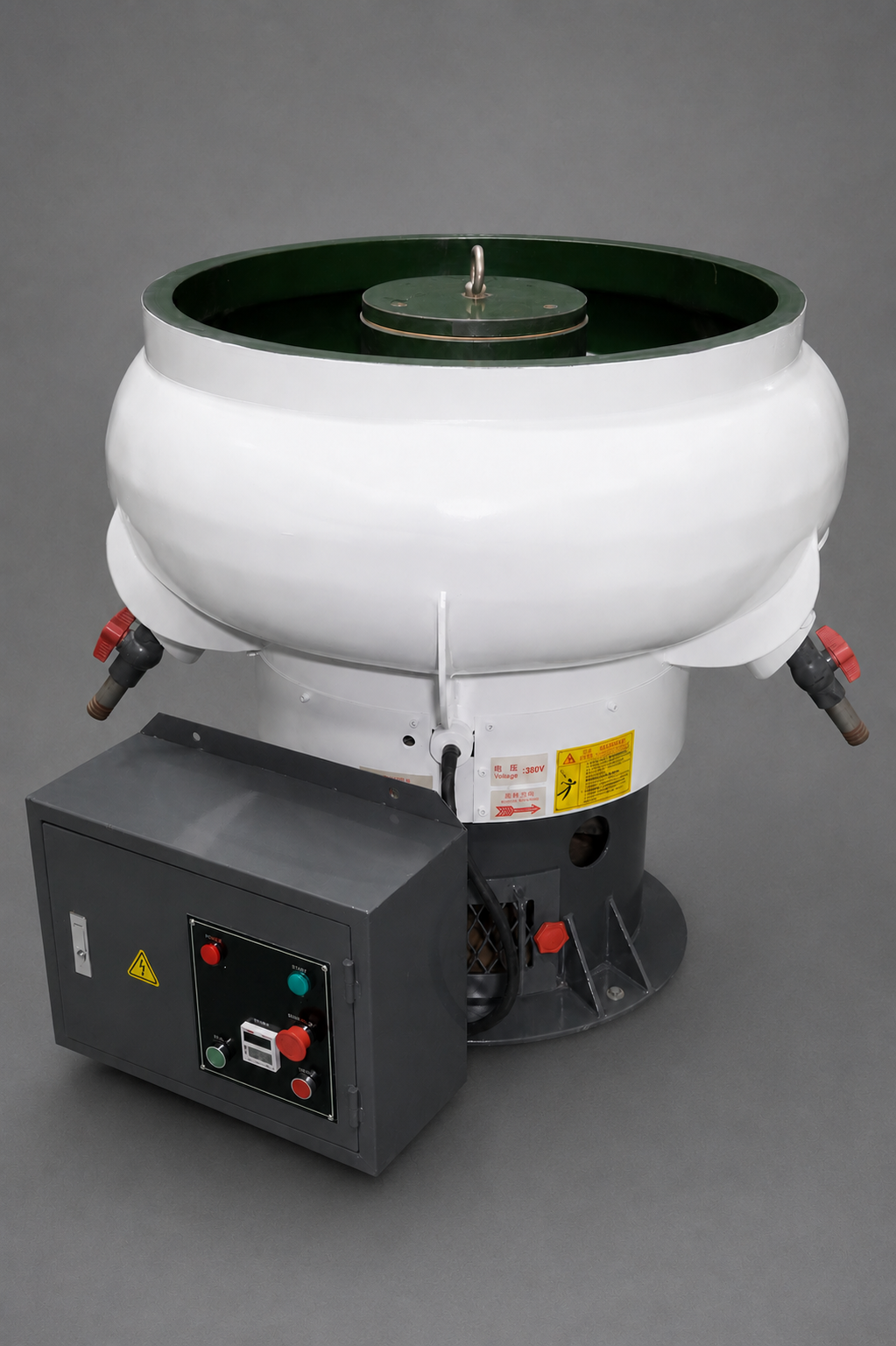

VB-150SA Automatic Discharge Curved Vibratory Finishing Machine is a high-end solution from Taiwan, expertly designed for polishing, cleaning, and surface treatment of metal, plastic, and ceramic components. Equipped with an automatic discharge system, this machine significantly reduces labor and saves valuable time during operation, enhancing overall production efficiency.
With a spacious 150-liter capacity and a powerful 3HP motor, the VB-150SA delivers stable and efficient performance. Its curved bowl design, measuring 1035mm in diameter and 1095mm in height, ensures a large processing volume while maintaining easy installation within your workspace. The machine is packed on a single pallet for convenient transport and setup.
Key Benefits:
-
Automatic discharge mechanism saves labor and time
-
Curved bowl design ensures fast, uniform, and effective surface treatment
-
Robust 3HP motor for reliable and smooth operation
-
Made in Taiwan — renowned for superior durability and premium quality
Technical Specifications:
| MODEL | VB-50B | VB-100B | VB-150B | VB-250B | VB-350B | VB-500B | VB-750B |
| Volume | 50 | 100 | 150 | 250 | 350 | 500 | 750 |
| Mass weight (kg) | 220 kg | 360 kg | 450 kg | 600 kg | 720 kg | 1020 kg | 1600 kg |
| Volume of mass (kg) | 150 kg | 300 kg | 380 kg | 650 kg | 950 kg | 1200 kg | 2000 kg |
| Motor (HP) | 2 HP | 3 HP | 5 HP | 7.5 HP | 10 HP | 15 HP | 15 HP |
| Bowl diameler (mm) | 690 | 890 | 1035 | 1190 | 1350 | 1520 | 1750 |
| Overall height (mm) | 1040 | 1010 | 1095 | 1310 | 1390 | 1470 | 1630 |
