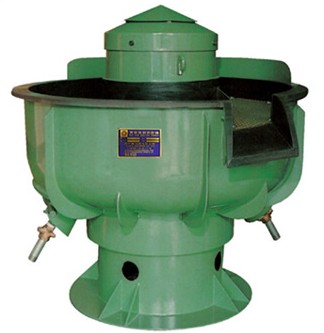

VB-150A Straight Wall Vibratory Finishing Machine with Automatic Discharge is a premium surface treatment solution from Taiwan, designed to optimize production efficiency while saving time and labor. This machine is an ideal choice for businesses demanding high performance and continuous operation.
Featuring a straight wall tank design, the VB-150A delivers consistent and powerful vibratory motion, ensuring superior polishing and cleaning results. With a generous 150-liter capacity and a robust 3HP motor, it perfectly meets the processing needs of large and bulky products. The tank diameter of 1035mm provides ample space for stable and efficient handling.
Packaged on a single pallet, the machine offers easy transportation and convenient installation at your facility.
Key Benefits:
-
Automatic discharge system reduces labor and saves time
-
Straight wall tank design ensures uniform vibration and optimal processing
-
Powerful motor suitable for medium to large-scale production
Technical Specifications:
| MODEL | VB-100A | VB-150A | VB-250A | VB-350A | VB-500A | VB-750A |
| Volume | 100 | 150 | 250 | 350 | 500 | 750 |
| Mass weight (kg) | 360 kg | 450 kg | 600 kg | 720 kg | 1020 kg | 1600 kg |
| Volume of mass (kg) | 300 kg | 380 kg | 650 kg | 950 kg | 1200 kg | 2000 kg |
| Motor (HP) | 2 HP | 3 HP | 5 HP | 7.5 HP | 10 HP | 15 HP |
| Bowl diameler (mm) | 890 | 1035 | 1190 | 1350 | 1520 | 1750 |
| Overall height (mm) | 1010 | 1095 | 1310 | 1390 | 1470 | 1630 |
