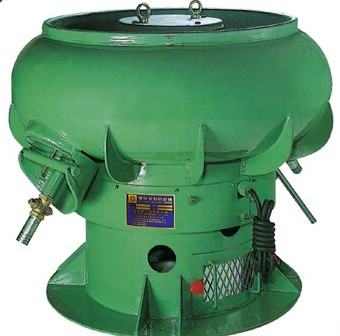

Vibratory Finishing Machine VB150D is designed for polishing, cleaning, and surface finishing of metal, plastic, ceramic, and other materials. Its curved-wall bowl design maximizes the interaction between media and workpieces, ensuring faster, more uniform finishing results.
With a 150-liter capacity and a 3HP motor, this model is ideal for small to medium-scale production. Its compact design, featuring an 820mm bowl diameter and 880mm total height, allows easy installation in workshops with limited floor space.
Manufactured with Taiwan technology and precision-built in China, the VB150D offers reliable performance at a cost-effective investment. Each unit is safely packed on 1 pallet for convenient transport and installation.
Key Advantages:
-
Curved-Wall Bowl Design – Enhances media flow for superior finishing quality
-
Stable & Durable Performance – Built for long-term reliability
-
Compact Size – Saves workshop space, easy to install and operate
-
Versatile Applications – Suitable for various materials and industries
Technical Specifications
| MODEL | VB-25D | VB-50D | VB-100D | VB-150D | VB-250D | VB-350D | VB-500D | VB-750D |
| Volume | 25 | 50 | 100 | 150 | 250 | 350 | 600 | 750 |
| Mass weight (kg) | 110 kg | 220 kg | 360 kg | 410 kg | 570 kg | 690 kg | 1050 kg | 1600 kg |
| Volume of mass (kg) | 100 kg | 150 kg | 300 kg | 380 kg | 650 kg | 950 kg | 1200 kg | 2000 kg |
| Motor (HP) | 1/2 HP | 1 HP | 2 HP | 3 HP | 5 HP | 7.5 HP | 10 HP | 15 HP |
| Bowl diameler (mm) | 550 | 695 | 820 | 950 | 1100 | 1260 | 1440 | 1650 |
| Overall height (mm) | 668 | 795 | 880 | 900 | 980 | 1035 | 1095 | 1270 |
