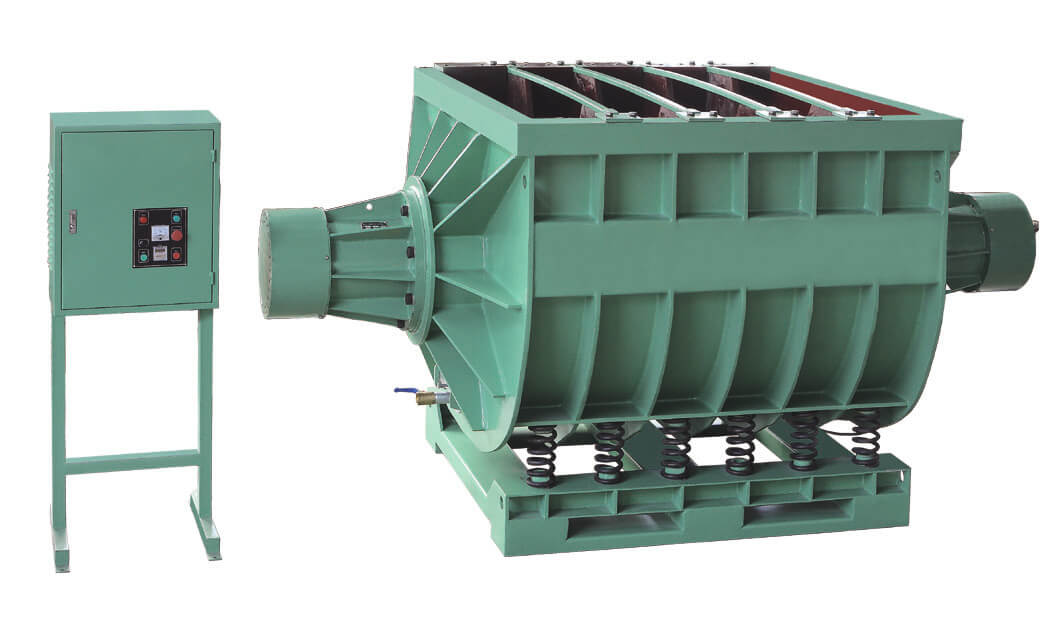

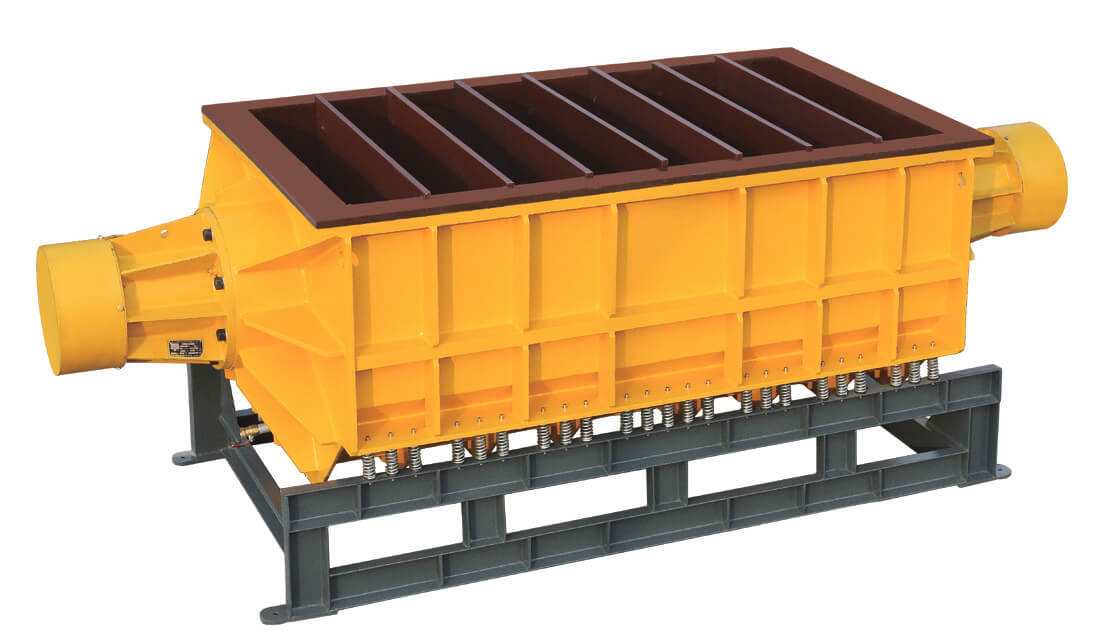

U-Shape Linear Vibratory Finishing Machine XZG (B)500 is purpose-built for surface treatment, mixing, and cleaning processes in industrial production. Its long, straight-wall tank design ensures a consistent and efficient material flow, making it ideal for applications that require large capacity and continuous operation.
With a 500-liter working capacity and overall dimensions of 2670 x 1000 x 985 mm, this machine is perfectly suited for large-scale production environments. Manufactured in China and shipped in 1 pallet standard packaging, the XZG (B)500 is designed for safe transport and straightforward installation.
Key Advantages:
-
U-Shape Linear Tank – Optimizes material flow for uniform results
-
Large Capacity (500L) – Ideal for industrial-scale production
-
Robust Construction – Built to last with easy maintenance
-
Versatile Applications – Suitable across multiple industries and processes
Technical Specifications
| Model | XZG (B)500 | XZG (B)900 | XZG (B)1200 | XZG (B)1800 | XZG (B)2800 |
| Total Volume (L) | 500 | 900 | 1200 | 1800 | 2800 |
| Max overall dimention (mm) | 2670 x 1000 x 985 | 2700 x 1050 x 1100 | 3000 x 1050 x 1100 | 3500 x 1336 x 1256 | 3300 X 1830 X 1740 |

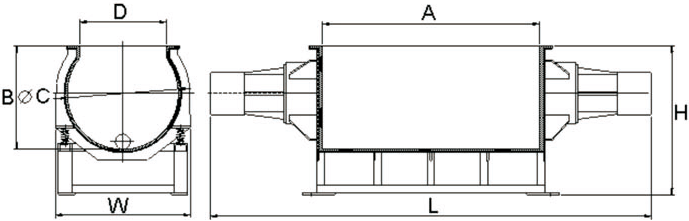

| Chamber length A(mm) | 1310 | 1200 | 2000 | 2000 | 1580 |
| Chamber length B(mm) | 700 | 850 | 850 | 940 | 1270 |
| Chamber diameter ØC(mm) | 690 | 900 | 750 | 1120 | 1500 |
| PU Lining thickness (mm) | 25 | 25 | 25 | 25 | 25 |
| Motor Power (Kw) | 2.2 X 2 | 4.0 X 2 | 4.0 X 2 | 5.5 X 2 | 9.0 X 2 |
| Weight (kg) | 700 | 900 | 2100 | 2800 | 4000 |
