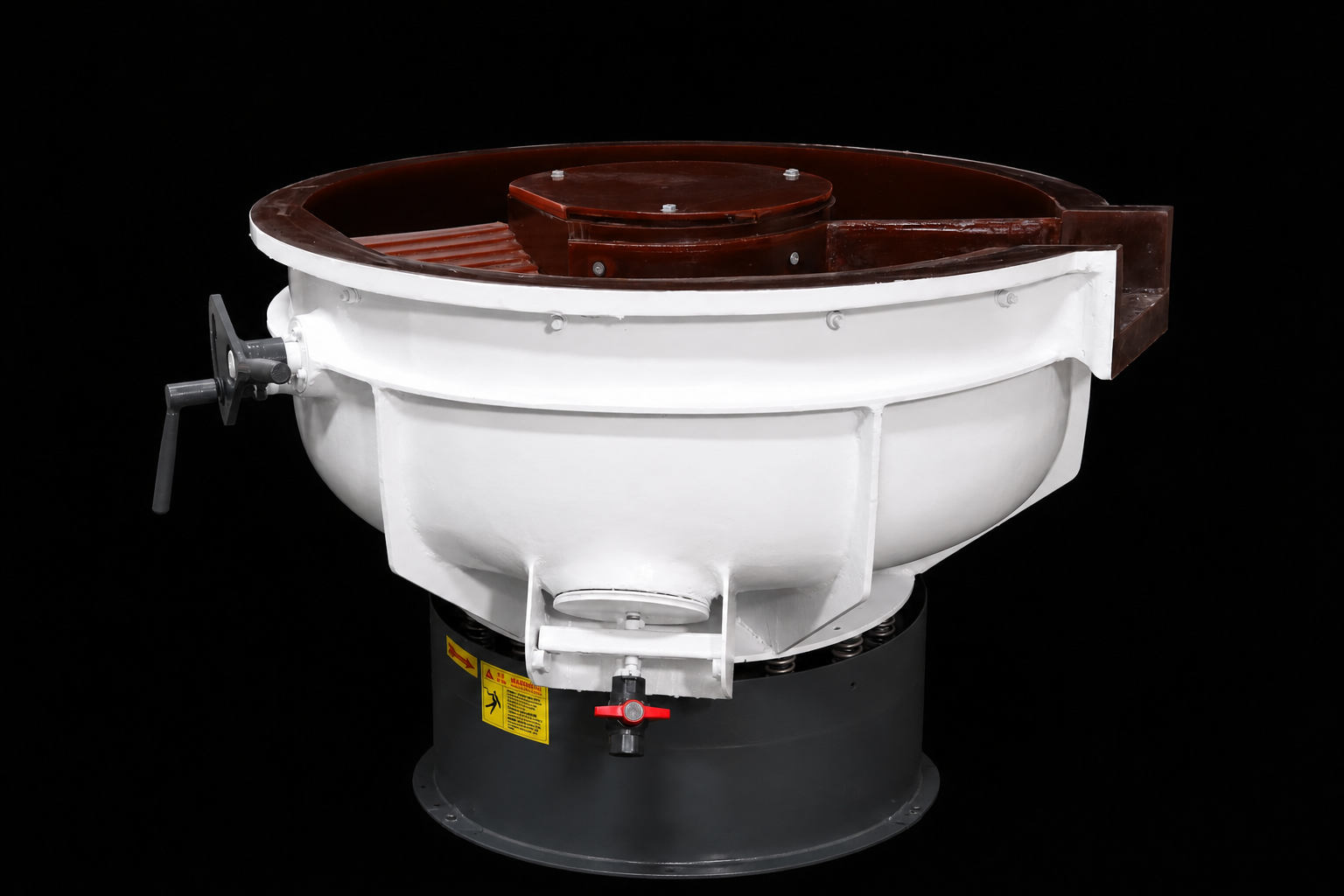

LZG(B)150 Automatic Discharge Vibratory Finishing Machine is a modern, specialized solution designed to automate the unloading process after polishing or cleaning. With its automatic discharge mechanism, this machine reduces manual labor, saves time and workforce, and significantly boosts efficiency in surface treatment workflows.
Powered by a 2.2 kW motor and featuring a 150L capacity, it is ideal for medium to small metal parts used in mechanical engineering, electronics components, motorcycle and automotive industries.
Key Features:
-
Automatic product discharge saves time and labor
-
Stable operation with high durability
-
Perfect for high-volume production lines
-
Optimized design for easy operation and maintenance
Technical Specifications:
| Model | LZG(B)100 | LZG(B)150 | LZG(B)200 | LZG(B)300 | LZG(B)400 | LZG(B)600 |
| Total Volume (L) | 100 | 150 | 200 | 270 | 480 | 660 |
| Max overall dimention A(mm) | 1080 | 1170 | 1200 | 1370 | 1430 | 1860 |
| Motor installation tube Ø B (mm) | Ø 460 | Ø 460 | Ø 530 | Ø 630 | Ø 630 | Ø 900 |
| Process bowl width C(mm) | Ø 220 | Ø 260 | Ø 252 | Ø 275 | Ø 330 | Ø 390 |
| Unload width D(mm) | 250 | 210 | 250 | 320 | 380 | 470 |
| Machine height H1(mm) | 980 | 860 | 940 | 960 | 1270 | 1140 |
| Unload height H2(mm) | 800 | 710 | 770 | 760 | 1090 | 925 |
| Motor (Kw) | 1.5/2.2 | 2.2 | 3 | 3.7/5.0 | 5.0 | 5.5/7.5 |
| Weight (kg) | 280 | 320 | 460 | 650 | 780 | 1180 |
