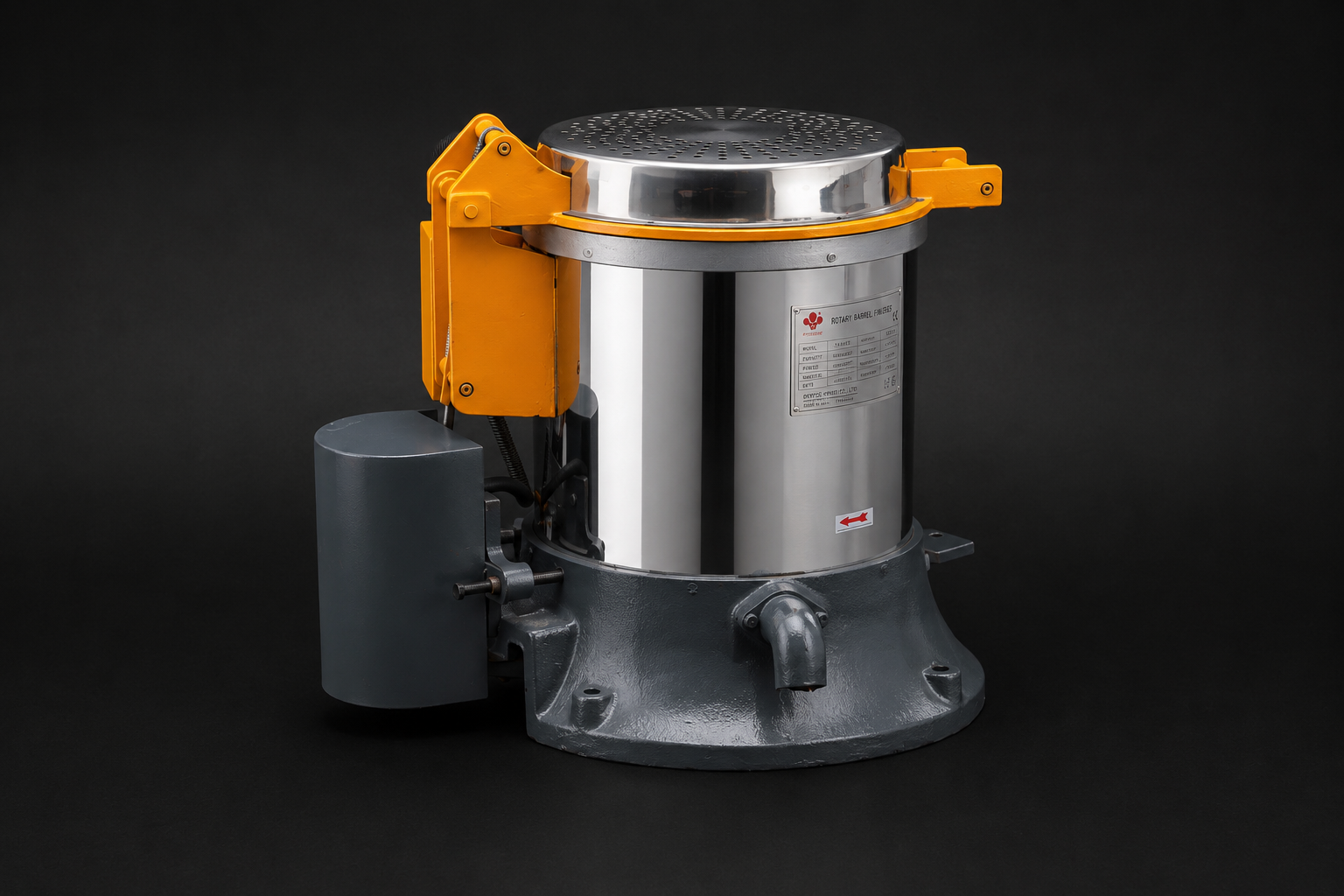

The LH500 Centrifugal Dryer is a specialized machine designed for drying products after polishing or washing processes. Featuring a centrifugal drying mechanism combined with a powerful 3kW motor, the LH500 delivers fast and efficient drying, helping to save time and enhance production efficiency.
With a drying capacity of 2.7 cu. ft. (approximately 165lbs), it is suitable for a wide range of products—from metal and plastic parts to mechanical components. The machine boasts a sturdy construction with overall dimensions of 33.5" × 35.4" × 34.6", making it easy to install in various workshop or factory settings.
Key Features:
-
Centrifugal drying mechanism for fast and even drying
-
Durable design, easy to maintain and operate
-
Ideal for production lines with medium drying volume
-
High efficiency, saving both time and labor
Technical Specifications:
| Model | VH400A | VH400B | VH500A | VH500B |
| Basket Dimensions (inches) | Ø 15.7'' x 11.8'' | Ø 15.0'' x 11.0'' | Ø 19.7'' x 15.7'' mm | Ø 18.9'' x 11.0'' mm |
| Basket Volume | 1.24 cu. ft. | 1.24 cu. ft. | 2.65 cu. ft. | 2.65 cu. ft. |
| Working capacity | 77.2 lbs or 1/3 (height of basket) | 77.2 lbs or 1/3 (height of basket) | 165.3 lbs or 1/3 (height of basket) | 165.3 lbs or 1/3 (height of basket) |
| Working temperature | 122°F – 158°F | 122°F – 176°F | 122°F – 158°F | 122°F – 158°F |
| Rotation Speed | 552 RPM | 552 RPM | 300 RPM | 300 RPM |
| Motor Speed | 1430 RPM | 1430 RPM | 1430 RPM | 1430 RPM |
| Motor Power | 1.01 HP | 1.01 HP | 1.48 HP | 2.01 HP |
| Heating Power | 4.83 HP | 2.41 HP | 4.69 HP | 4.02 HP |
| Dimensions (inches) | 28.9" × 30.7" × 29.5" | 30.7" × 23.6" × 29.5" | 33.5" × 35.4" × 34.6" | 39.4" × 31.5" × 33.9" |
| Machine Weight (lbs) | 331 | 355 | 507 | 534 |
